Plastic welding Solutions

BAK-Logo
Hot air welding tools
RiOn 2
  • optimal performance / best price
  • easy to service thanks to brushless motor
  • stepless adjustment of temperature
  • Ergonomic, slim handle for fatique-free welding
  • Free air supply thanks to the rear-integrated air filter
  • perfect view of every weld seam thanks to the built-in LED light
  • automatic cooling for maximum safety and longevity
  • Voltage V 120/230
  • Frequency Hz 50/60
  • Power consumption W 1600
  • Temperature °C 20-620
  • Air flow l/min 170-250
  • Noise level dB 70
  • Size mm 100x360, handle 55
  • Weight Kg 1.2 with cable
  • Markings CE

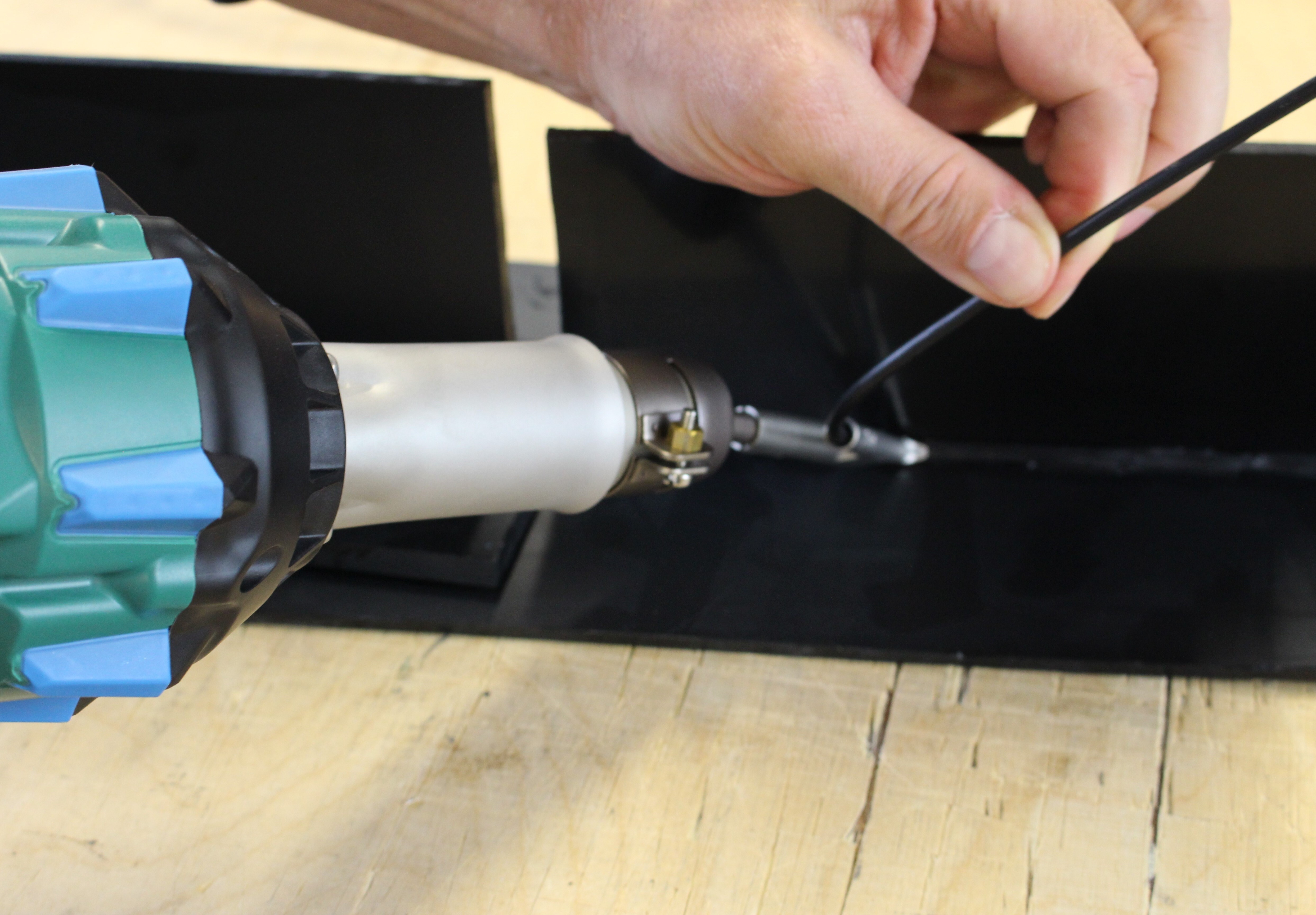

  • AnwendungsbildRion2-v2__Resampled
  • kleinesBild2-RiOn__Resampled

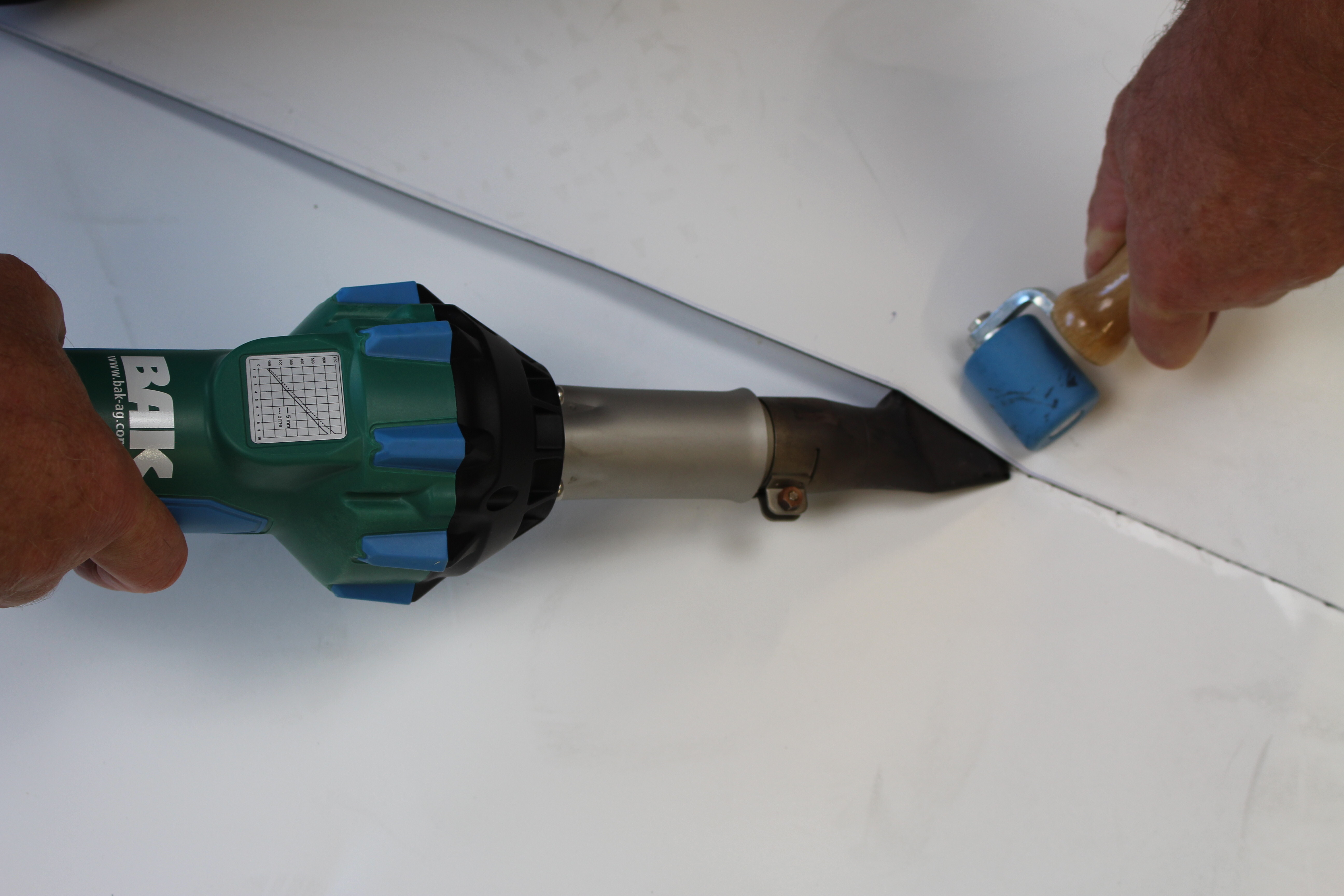

  • kleinesBild1-RiOn__Resampled
Download Datasheet
Request Now

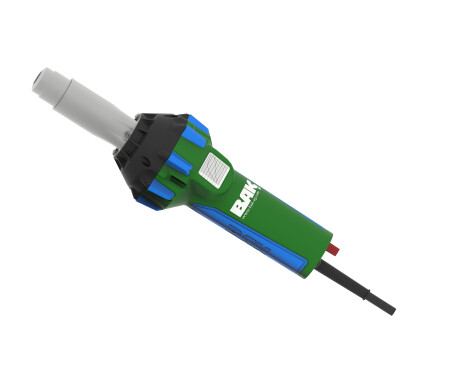

image-1
RiOn 2 DIG
  • easy to service thanks to brushless motor
  • stepless adjustment of temperature and air flow
  • Erconomic, slim handle for fatique-free welding
  • Free air supply thanks to the rear-integrated air filter
  • perfect view of every weld seam thanks to the built-in LED light
  • Eco modus for efficient work
  • automatic cooling for maximum safety and longevity
  • Voltage V 120/230
  • Frequency Hz 50/60
  • Power consumption W 1600
  • Temperature °C 20-620
  • Air flow l/min 170-250
  • Noise level dB 70
  • Size mm 100x360, handle 55
  • Weight Kg 1.2 with cable
  • Markings CE
Download Datasheet
Request Now

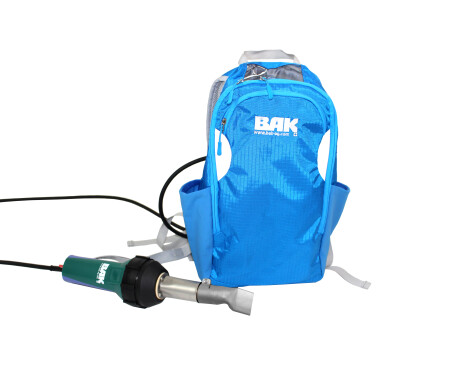

LiiOn
  • Long running time (45min on the highest temperature, depending on the nozzle used)
  • Tool is giving a signal once the battery is empty
  • simple recharging
  • High quality backpack included in your order
  • High power
  • Voltage V max. 60
  • Power consumption W 1200
  • Temperature °C 20-650
  • Air flow l/min ca. 150
  • Static pressure Pa ca. 1600
  • Noise level dB 55
  • Size hand tool mm 100x340, handle Ø56
  • Weight hand tool kg 1,5
  • Weight Kg 7,5
  • Markings CE
Download Datasheet
Request Now

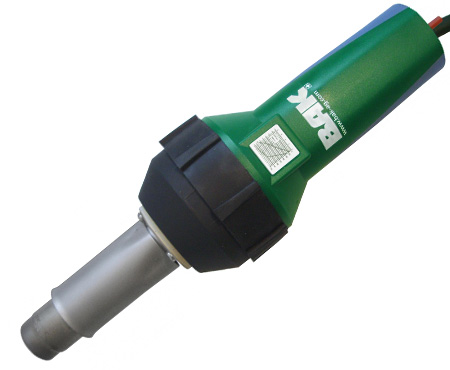

Rion
RiOn
  • optimal performance / best price
  • high speed welding enables high productivity
  • stepless adjustment of temperature
  • easy welding with ergonomic handle
  • high quality
  • heater tube for push fit or screw on nozzles
  • large accessories range
  • Field tested, high performance and flexible
  • Voltage V 120/230
  • Frequency Hz 50/60
  • Power consumption W 1600
  • Temperature °C 20-650
  • Air volume l/min approx. 250
  • Static pressure Pa approx. 3000
  • Noise level dB 70
  • Size mm Ø 100x340, handle 56
  • Weight Kg 1.3 with cable
  • Markings CE
Download Datasheet
Request Now

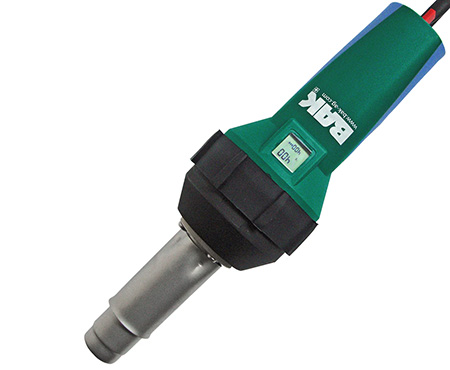

Polyweld-BAK-RiOn-Dig_1024x1024
RiOn Digital
  • digital read out of set and actual temperature
  • stepless adjustment of temperature
  • easy welding with ergonomic handle
  • light and handy
  • high quality
  • heater tube for push fit or screw on nozzles
  • large accessories range
  • 100% Swiss Made
  • Voltage V 120/230
  • Frequency Hz 50/60
  • Power consumption W 1600
  • Temperature °C 20-600
  • Air volume l/min approx. 250
  • Static pressure Pa approx. 3000
  • Noise level dB 64
  • Size mm Ø 100x340, handle 56
  • Weight Kg 1.3 with cable
  • Markings CE
Download Datasheet
Request Now

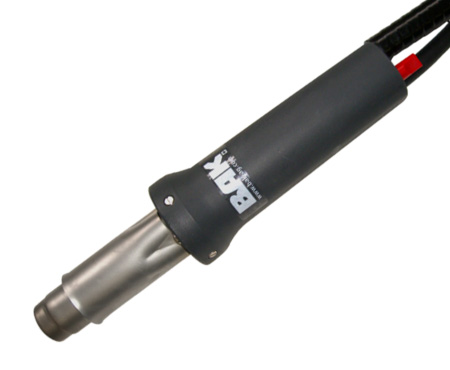

maron 1
MarOn
  • temperature stepless adjustable
  • adapter tube with heat protection
  • for push fit or screw on nozzles
  • air supply with blower type HD 140 or SorOn
  • connected with blower SorOn for external application
  • Voltage V 120/230
  • Frequency Hz 50/60
  • Power consumption W 1550/1600
  • Temperature °C 20-650
  • Min. air flow (20°C) l/min 40
  • Size (l x Ø) mm 300x62, handle Ø 46
  • Weight kg 1,2 with cord and hose
  • Markings CE

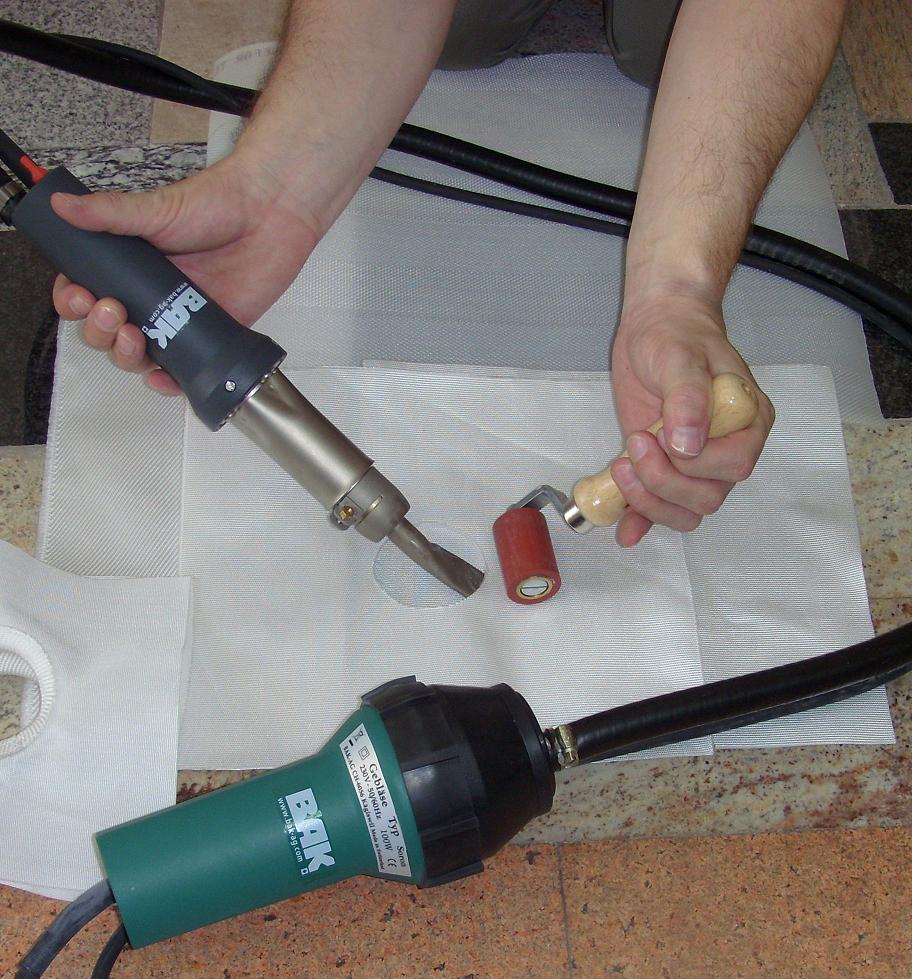

  • maron

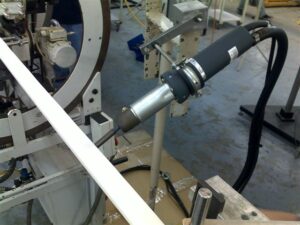

  • maron3
Download Datasheet
Request Now
maron-gekoppelt_530x@2x
MarOn connected to SorOn
  • temperature stepless adjustable
  • adapter tube with heat protection
  • for push fit or screw on nozzles
  • air supply with blower type HD 140 or SorOn
  • connected with blower SorOn for external application
  • Voltage V 120/230
  • Frequency Hz 50/60
  • Temperature °C 20-650
  • Air flow l/min max. ca. 300
  • Pressure static Pa approx. 3000
  • Weight kg 2,5 with cord
  • Markings CE
  • maron
  • maron3
Download Datasheet
Request Now

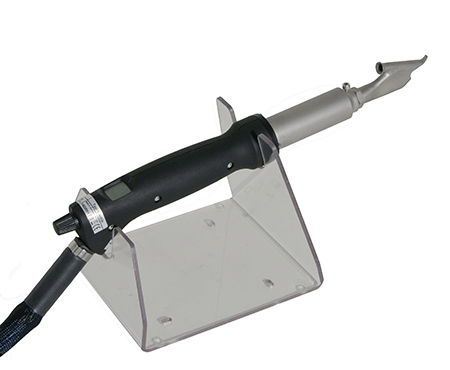

SONY DSC
WeldOn
  • digital read out of set and actual temperature
  • stepless adjustment of electronic controlled temperature
  • fatigue-proof welding thanks to ergonomic handle and rotating air hose
  • cooled heater tube
  • nozzle position 360° adjustable
  • large accessories range
  • Voltage V 120/230
  • Power consumption W 1000
  • Frequency Hz 50/60
  • Temperature °C 20-450
  • Air flow l/min min. 40
  • Pressure bar max. 1
  • Size mm 295 x 62
  • Weight kg 0,75 with 3 m cord, air hose and Y-connection
  • Markings CE
Download Datasheet
Request Now

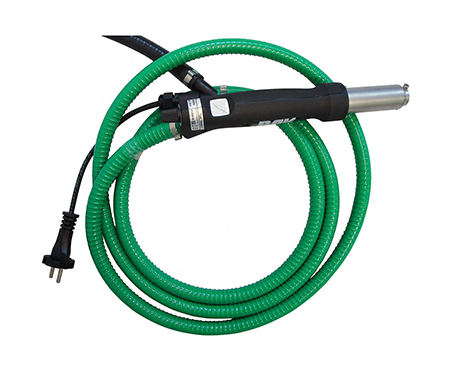

BAK-WeldONs-50-HighEnd-1505__Resampled
WeldOn S
  • movable and flexible
  • stepless adjustment of temperature
  • fatigue-proof welding thanks to ergonomic handle and rotating air hose
  • cooled heater tube
  • nozzle position 360° adjustable
  • heater tube for push fit or screw on nozzles
  • large accessories range
  • Voltage V 120/230
  • Power consumption W 600
  • Frequency Hz 50/60
  • Temperature °C 20-450
  • Air flow l/min min. 40
  • Pressure bar max. 1
  • Size mm 295x62 Weight kg 0,75 with 3 m cord, air hose and Y-connection CE
  • Weight kg 0,75 with 3 m cord, air hose and Y-connection
  • Markings CE
Download Datasheet
Request Now
Micon
MicOn
  • stable and robust design
  • speed and temperature stepless adjustable
  • for the welding of thermoplastic membranes
  • constant temperature and speed
  • easy to handle
  • pressure is given manual
  • guidance help available as accessory
  • Voltage V 120/230
  • Power consumption W 2100/1700
  • Frequency Hz 50/60
  • Temperature °C max. 600
  • Drive m/min. max. 4.0
  • Size (l x w x h) mm 400 x 170 x 330
  • Weight kg 6.8
  • Markings CE
Download Datasheet
Request Now
MicOn Edge
MicOn Edge
  • welding 20mm close to the corner
  • stable and robust design
  • speed and temperature stepless adjustable
  • for the welding of thermoplastic membranes
  • constant temperature and speed
  • easy to handle
  • guidance help available as accessory
  • Voltage V 120/230
  • Power consumption W 2100/1700
  • Frequency Hz 50/60
  • Temperature °C max. 600
  • Drive m/min. max. 4.0
  • Size (l x w x h) mm 400 x 170 x 330
  • Weight kg 6.8
  • Markings CE
Download Datasheet
Request Now
Hot Wedge Welders
ComOn3 with recording
  • reproducible welds through innovative recording system of all welding parameters
  • creates a welding report that complies with all current standards and regulations
  • recording of all welding data and creating the report via myBAK-app with GPS
  • high welding capacity, speed and quality
  • changing of wedge made easy because pluggable
  • welding range HD-PE: 1,0-3,0mm
  • optional available with kit to use Handtool for pre heat and drying
  • Voltage V 230
  • Frequency Hz 50/60
  • Power consumption W 2100/1700 W 1600
  • Temperature °C 20-420
  • Speed (switchable) m/min 5/10
  • Wedge length mm 100/80
  • Welding pressure N max. 1500
  • Size (L x B x H) mm 450 x 280 x 350
  • Size (L x BSeam dimensions (other sizes on request) mm 15-15-15 x H) mm 450 x 280 x 350
  • Weight kg 18,5
  • Markings CE

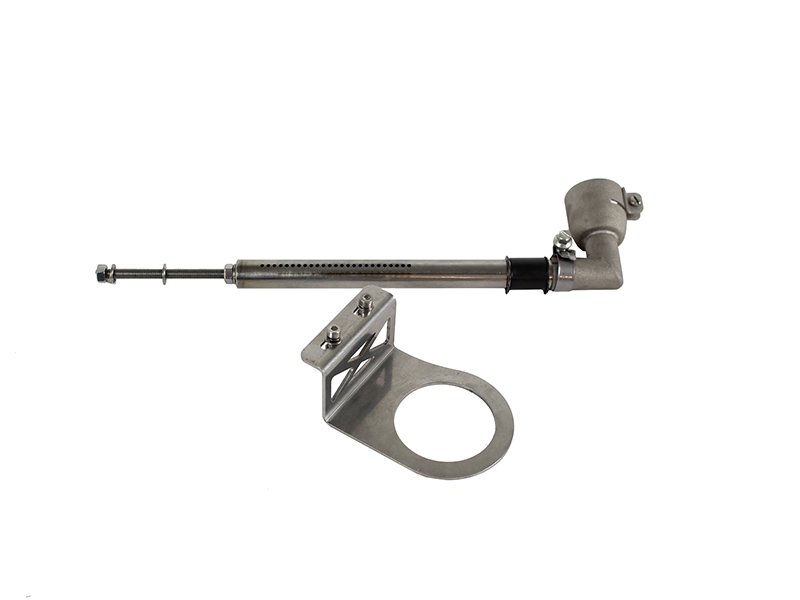

  • 6664086_Pre-Heat-Kit-white

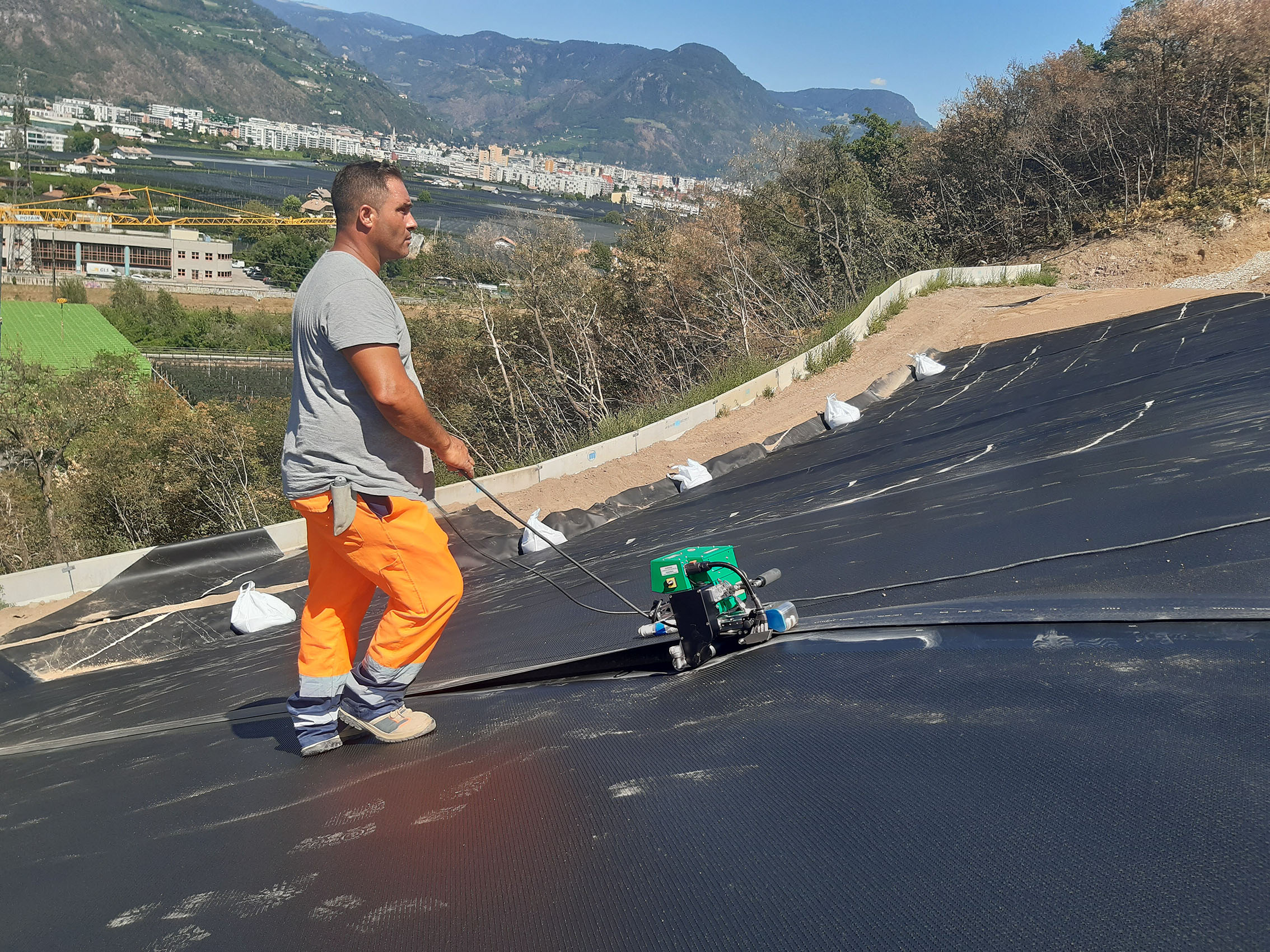

  • 20220803_142522__Resampled

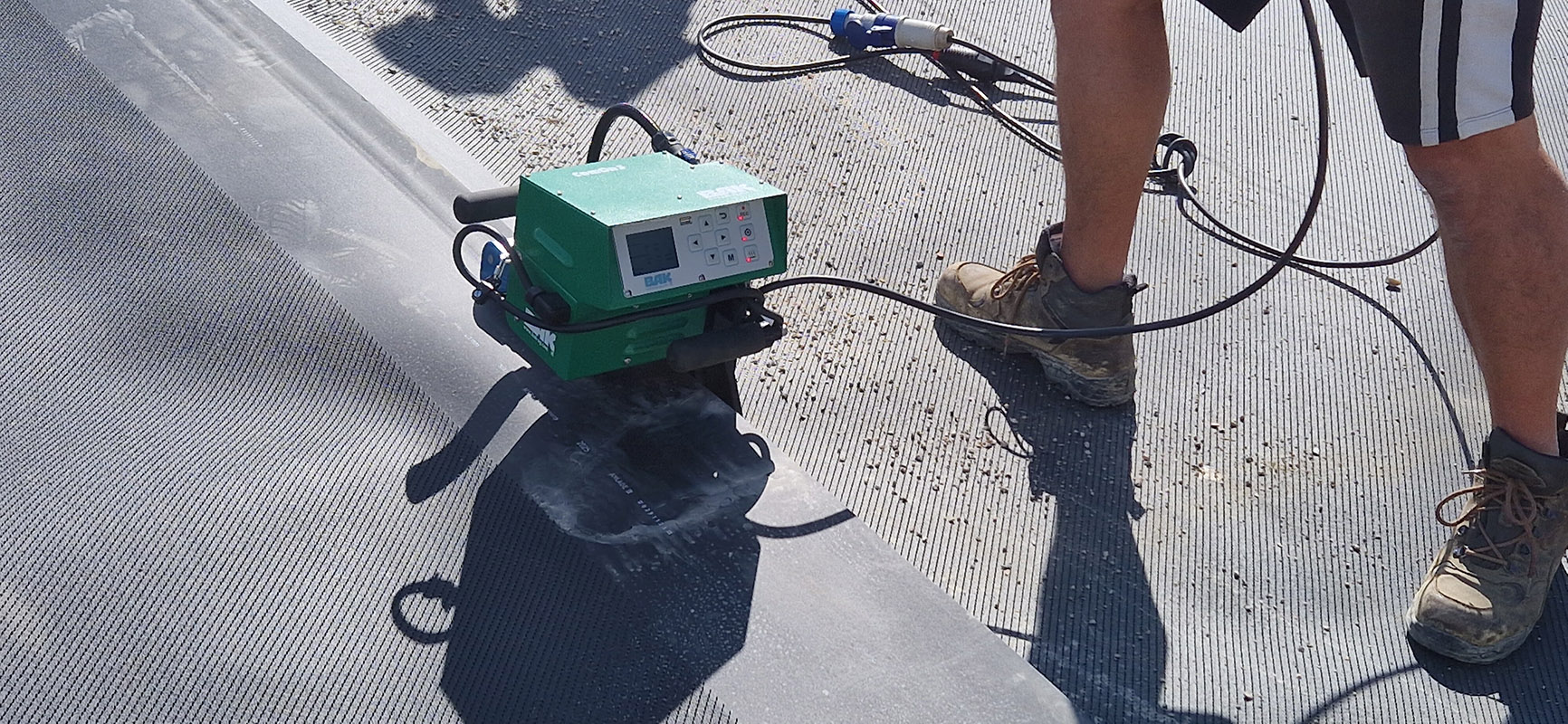

  • 20250729_102952__Resampled
Download Datasheet
Request Now

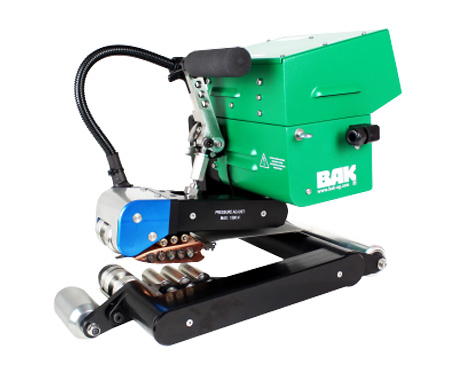

Comeon-3
ComOn3
  • high welding capacity, speed and quality
  • digital read out of temperature, speed and pressure
  • changing of wedge made easy because pluggable
  • material welding range: PE-LD, PE-HD, PP, ECB, EVA, TPO
  • welding range HD-PE: 1,0-3,0mm
  • integrated GPS tracker - location of the machine is known at every moment
  • optional available with Kit to use handtool for pre heat and drying
  • On request a version with recording of the welding parameters is available
  • Voltage V 230
  • Frequency Hz 50/60
  • Power consumption W 2100/1700
  • Temperature °C 20-420
  • Speed (switchable) m/min 5/10
  • Wedge length mm 100/80
  • Welding pressure N max. 1500
  • Size (L x B x H) mm 450 x 280 x 350
  • Size (L x BSeam dimensions (other sizes on request) mm 15-15-15 x H) mm 450 x 280 x 350
  • Weight kg 18,5
  • Markings CE
Download Datasheet
Request Now
ProtOn-PRE-FAB-

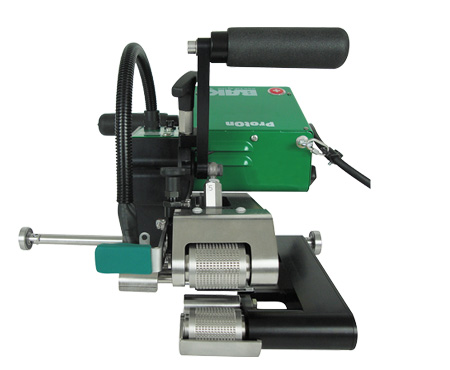

ProtOn PRE FAB
  • small, light and fast
  • drive motor brushless
  • to prefabricate thin material
  • simple to operate
  • stepless adjustment of all welding parameters
  • material welding range: PE-LD, PE-HD, PVC-P, PP, ECB, EVA, TPO
  • integrated GPS tracker
  • 100% Swiss Made!
  • Voltage V 230
  • Frequency Hz 50/60
  • Power consumption W 2100/1700
  • Temperature °C max. 300
  • Speed m/min max. 10
  • Welding pressure N max. 800
  • Size (l x w x h) mm 370 x 435 x 280
  • Seam dimensions (other sizes on request) mm 35
  • Poids kg 11
  • Markings CE
Download Datasheet
Request Now

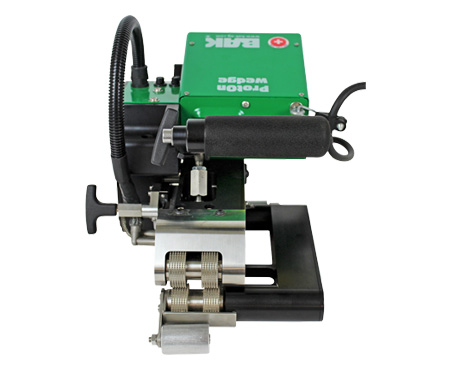

ProtOn-WEDGE-
ProtOn WEDGE
  • small and light with high welding performance
  • service friendly
  • stepless adjustment of all welding parameters
  • user friendly operation
  • material welding range: PE-LD, PE-HD, PVC-P, PP, ECB, EVA, TPO
  • integrated GPS tracker
  • 100% Swiss Made!
  • Voltage V 120/230
  • Frequency Hz 50/60
  • Power consumption W 1600
  • Temperature °C 20-650
  • Air volume l/min approx. 250
  • Static pressure Pa approx. 3000
  • Noise level dB 70
  • Size mm Ø 100x340, handle 56
  • Weight Kg 1.3 with cable
  • Markings CE
Download Datasheet
Request Now

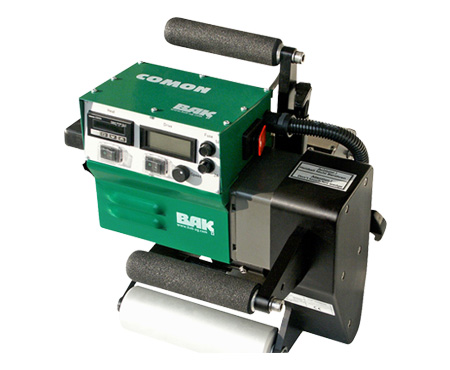

comeon-2
ComOn 2
  • optimal performance / best price
  • high welding capacity, speed and quality
  • field tested electronics, service friendly
  • maintenance-free servo drive motor
  • stepless adjustment of all welding parameters
  • stable, lightweight and compact designeration
  • material welding range: PE-LD, PE-HD, PVC-P, PP, ECB, EVA, TPO
  • Voltage V 230
  • Power consumption W 1700
  • Frequency Hz 50/60
  • Temperature °C Max 460
  • Welding pressure N max. 1400
  • Drive m/min. 0.8 - 5.0
  • Size (l x w x h) mm 460 x 300 x 330
  • Weight kg 14 CE
  • Markings CE

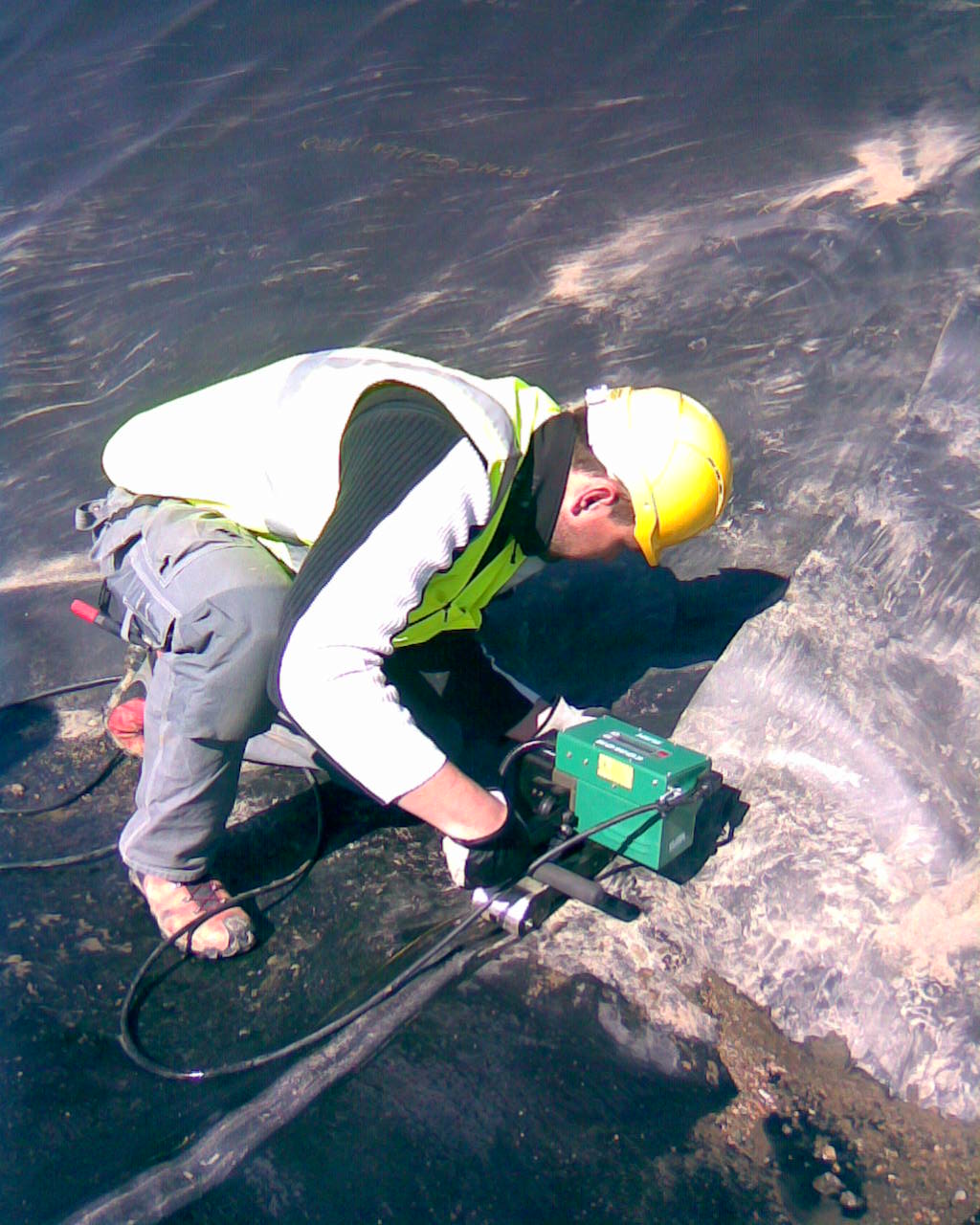

  • comon4
  • comon5
  • DSCN0274-Comon
Download Datasheet
Request Now
Hot Air Welding Machines

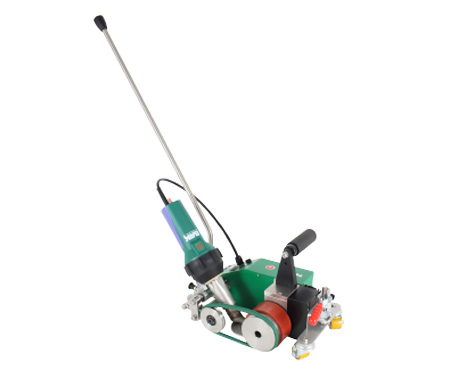

TechOn
TechOn
  • small and handy
  • Low current consumption
  • Digital read out of temperature and speed
  • Automatic drive start
  • Welding seam 40mm
  • Voltage V 120/230
  • Frequency Hz 50/60
  • Power consumption W 1700/2100
  • Temperature °C 20-600
  • Speed m/min 0.5-4
  • Dimensions (L x B x H) mm 450 x 230 x 320
  • Weight kg 17
  • Markings CE
Download Datasheet
Request Now
MicOn-
MicOn
  • stable and robust design
  • speed and temperature stepless adjustable
  • for the welding of thermoplastic membranes
  • constant temperature and speed
  • easy to handle
  • pressure is given manual
  • guidance help available as accessory
  • Voltage V 120/230
  • Frequency Hz 50/60
  • Power consumption W 2100/1700
  • Temperature °C max. 600
  • Drive m/min. max. 4.0
  • Size (l x w x h) mm 400 x 170 x 330
  • Weight kg 6.8
  • Markings CE
Download Datasheet
Request Now
MicOn Edge
MicOn Edge
  • welding 20mm close to the corner
  • stable and robust design
  • speed and temperature stepless adjustable
  • for the welding of thermoplastic membranes
  • constant temperature and speed
  • easy to handle
  • guidance help available as accessory
  • Voltage V 120/230
  • Power consumption W 2100/1700
  • Frequency Hz 50/60
  • Temperature °C max. 600
  • Drive m/min. max. 4.0
  • Size (l x w x h) mm 400 x 170 x 330
  • Weight kg 6.8
  • Markings CE
Download Datasheet
Request Now

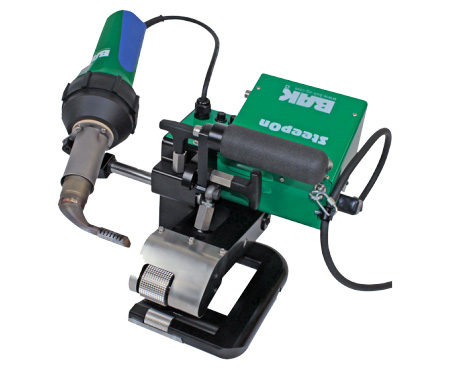

SteepOn
SteepOn
  • designed for the most demanding job sites
  • speed and temperature stepless adjustable
  • for the welding of all roofing membranes
  • for the work on flat and pitched roofs
  • constant pressure, temperature and speed
  • for loose laid membranes
  • brushless, easy to maintain
  • guide handle available as accessory
  • Voltage V 120/230
  • Power consumption W 1800
  • Frequency Hz 50/60
  • Temperature °C max. 600
  • Drive m/min. max. 5.0
  • Size (l x w x h) mm 360 x 330 x 310
  • Weight kg 8
  • Markings CE
Download Datasheet
Request Now

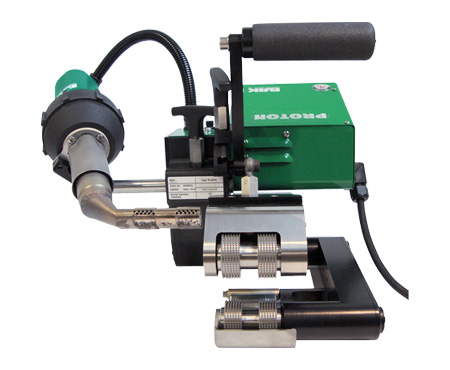

ProtOn-AIR
ProtOn AIR
  • small, light and very robust
  • drive and heater motor brushless
  • for thin material and overhead welding
  • simple to operate
  • stepless adjustment of all welding parameters and air flow
  • material welding range: PE-LD, PE-HD, PVC-P, PP, ECB, EVA, TPO
  • integrated GPS tracker
  • 100% Swiss made!S tracker
  • Voltage V 120/230
  • Frequency Hz 50/60
  • Power consumption W 2200
  • Temperature °C max. 550
  • Speed m/min max. 5
  • Welding pressure N max. 1200
  • Size (l x w x h) mm 370 x 340 x 330
  • Seam dimensions (other sizes on request) mm 15-15-15
  • Weight kg 9,8
  • Markings CE
Download Datasheet
Request Now

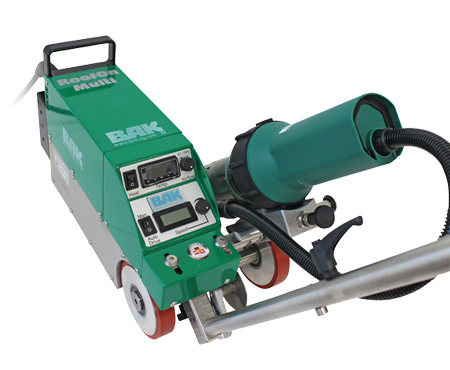

RoofOn-Multi
RoofOn Multi
  • for the welding of thermoplastic roofing membranes
  • movable rollers
  • digital control and read out of temperature and speed
  • stepless adjustment of air flow
  • automatic drive start system
  • wrinkle-free welding
  • Voltage V 230
  • Power W 3000
  • Frequency Hz 50/60
  • Temperature °C 20-620
  • Speed m/min. max. 6
  • Size (l x w x h) mm 380 x 340 x 700 (incl. guide bar)
  • Weight kg 21
  • Markings CE
Download Datasheet
Request Now

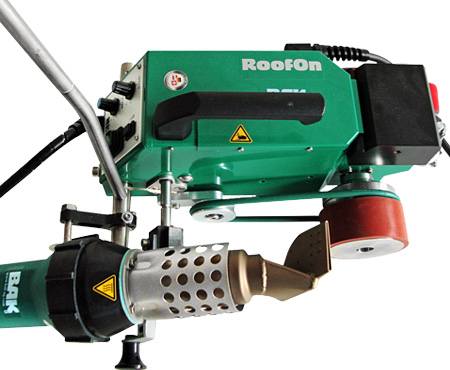

RoofOn-&-RoofOn-Digital
RoofOn & RoofOn Digital
  • for the welding of thermoplastic roofing membranes
  • stepless adjustment of air flow
  • automatic drive start system
  • wrinkle-free welding
  • seam width 40 mm
  • digital control and read out of temperature and speed
  • Voltage V 120/230
  • Power consumption W 3400/2900
  • Frequency Hz 50/60
  • Temperature °C 20-600
  • Speed m/min. 0,5-12
  • Air flow max.(20°) l/min. 500
  • Air flow % 50-100 stepless
  • Noise level dB 64
  • Size (l x w x h) mm 450 x 330 x 220
  • Weight kg 15 with 5 m cord
  • Protection class I
Download Datasheet
Request Now
RoofOn-R-Edge-&-RoofOn-R-Edge-Digital
RoofOn R Edge &
RoofOn R Edge Digital
  • for the welding of thermoplastic roofing membranes
  • can weld as close as 20 mm to the edge
  • adjustment of speed, air flow and temperature with potentiometer
  • digital control and read out of temperature and speed
  • automatic drive start system
  • wrinkle-free welding
  • Voltage V 230/120
  • Power W 3400/2900
  • Frequency Hz 50/60
  • Temperature °C 20-600
  • Speed m/min. 0,5-12
  • Air flow max. (20°) l/min 500
  • Air flow % 50-100 stepless
  • Noise level dB 64
  • Size (l x w x h) mm 480 x 360 x 850
  • Weight kg 26 with 5 m cord
  • Protection class I
Download Datasheet
Request Now
LarOn-21
LarOn 21
  • continuous operation possible because of brushless motors
  • designed for the most demanding job sites
  • digital display to check voltage before operation
  • air flow, speed and temperature stepless adjustable
  • for the welding of roofing membranes
  • modified bitumen possible with converting kit 80mm or 100mm
  • integrated GPS tracker - location of the machine is known at every moment
  • mybak App
  • 100% Swiss made!
  • Voltage V 230/400
  • Nominal capacity W 3600/4600
  • Power consumption W 4600/5700
  • Frequency Hz 50/60
  • Temperature °C 20-620
  • Speed m/min. 0,5 - 21
  • Size (L x B x H) mm 610 x 410 x 320
  • Weight (without weights) kg 37
  • Weight (with weights) kg 42
  • Markings CE
Download Datasheet
Request Now
PlanOn
PlanOn
  • for the welding of thermoplastic roofing membranes
  • robust and mature technology
  • automatic drive start system
  • high welding speed
  • economic and user friendly
  • adjustment of welding speed and temperature with potentiometer
  • Voltage V 230/120
  • Power consumption W 3400/2900
  • Frequency Hz 50/60
  • Temperature °C 20-620
  • Speed m/min 0,5-12
  • Air flow % 50-100
  • Size (l x w x h) mm 460 x 360 x 310
  • Weight kg 14
Download Datasheet
Request Now
PlanOn-Band
PlanOn-Band
  • for welding of thermoplastic tapes
  • approved and robust technology
  • automatic drive start system
  • economic and user-friendly
  • stepless adjustment of speed and temperature with potentiometer
  • Voltage V 230
  • Power consumption W 3700
  • Frequency Hz 50/60
  • Temperature °C 20-600
  • Speed m/min. 0,5-12
  • Air flow max.(20°) l/min. 500
  • Air flow % 50-100 stepless
  • Noise level dB 50
  • Size (l x w x h) mm 460 x 360 x 640) mm 450 x 330 x 220
  • Weight kg 18,5 with 5 m cord
  • CE
Download Datasheet
Request Now

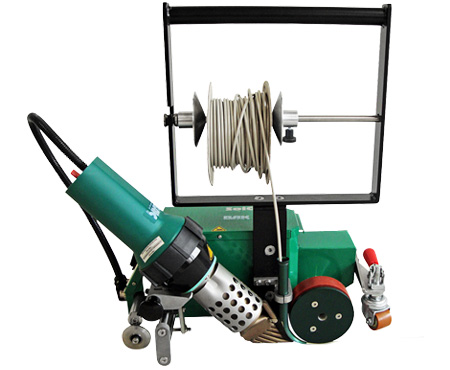

SolOn
SolOn
  • for welding of thermoplastic floors and linoleum
  • stepless adjustment of speed, air flow and temperature with potentiometer
  • automatic drive start system
  • optical wall switch with backlash make sure the machine stops at the wall and the floor is not burned
  • integrated dereller system
  • Voltage V 230/120
  • Power W 3400/2900
  • Frequency Hz 50/60
  • Temperature °C 20-600
  • Speed m/min. 0,5-12
  • Air flow max. (20°) l/min 500
  • Air flow % 50-100 stepless
  • Noise level dB 64
  • Measurements (l x w x h) mm 460 x 360 x 500
  • Weight kg 16 with 5 m cord
  • Protection class I
Download Datasheet
Request Now
BeltOn P
  • two welding seams in one operation
  • high welding performance
  • easy maintenance because of standard components
  • digital display showing temperature and speed
  • automatic drive start system
  • designed for the most demanding job sites
  • for welding of thermoplastic profiles
  • Voltage V 400
  • Power consumption W 6400
  • Frequency Hz 50/60
  • Temperature °C 20-620
  • Speed m/min. 24
  • Size (l x w x h) mm 900 x 530 x 340
  • Weight kg 39
  • Markings CE
Download Datasheet
Request Now

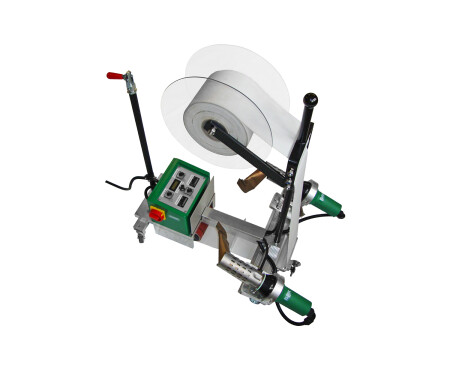

BeltOn T
  • for welding of thermoplastic tapes
  • high welding performance
  • easy maintenance because of standard controllers
  • digital display showing temperature and speed
  • automatic drive start system
  • easy to convert to different tape widths
  • Voltage V 400
  • Power consumption W 6400
  • Frequency Hz 50/60
  • Temperature °C 20-620
  • Speed m/min. 24
  • Tape width mm 50 - 150
  • Size (l x w x h) mm 900 x 530 x 340
  • Weight kg 39
  • CE
Download Datasheet
Request Now
Hot Air Blowers

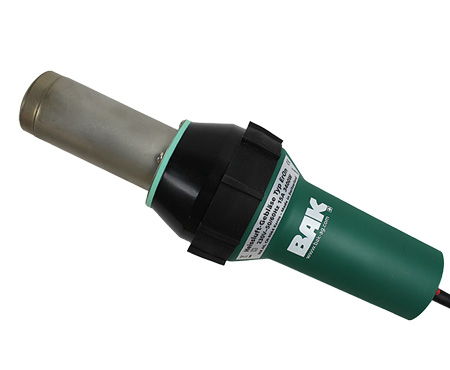

ErOn
ErOn
  • shrinking
  • drying
  • soldering
  • heating
  • activating
  • welding
  • bending
  • Voltage V 120/230
  • Power W 2300/2700/3400
  • Frequency Hz 50/60
  • Temperature °C 20-600
  • Air flow l/min approx. 500
  • Static pressure Pa approx .3000
  • Noise level dB 64
  • Size mm Ø 94x320, handle 64
  • Weight kg 1,5 with cord
  • Markings CE
Download Datasheet
Request Now
RiOn-BL-&-ErOn-BL
RiOn BL
  • Because of the self-developed brushless motor these tools are completely maintenance free and suitable for continuous operation. Therefore they are the perfect tools to build in machines.
  • Voltage V 230
  • Capacity W 1600
  • Frequency Hz 50/60
  • Temperature °C 20-650
  • Air flow l/min approx. 250
  • Static pressure Pa approx. 3000
  • Emission dB 64
  • Measurements mm Ø 100x340, handle 56
  • Weight kg 1,3
  • Markings CE
Download Datasheet
Request Now
RiOn-BL-&-ErOn-BL
ErOn BL
  • Because of the self-developed brushless motor these tools are completely maintenance free and suitable for continuous operation. Therefore they are the perfect tools to build in machines.
  • Voltage V 230
  • Capacity W 3400
  • Frequency Hz 50/60
  • Temperature °C 20-650
  • Air flow l/min approx. 600
  • Static pressure Pa approx. 3000
  • Emission dB 64
  • Measurements mm 320x94, handle 64
  • Weight kg 1,5
  • Markings CE
Download Datasheet
Request Now

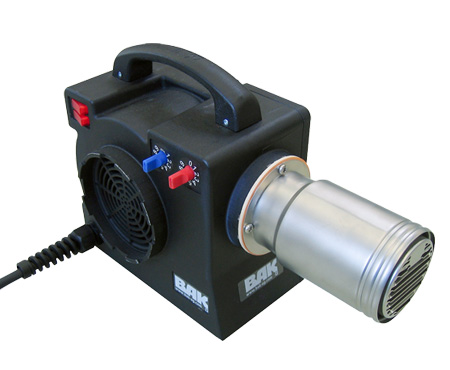

Compact
Compact
  • Variable temperature- and air flow setting. Our hot air blower type Compact is the most powerful of its kind worldwide. Ideal for heating, activating, shrinking and drying.
  • Voltage V 230/1x400-440
  • Power kW 2,3/3,1/3,7/4,7-5,6
  • Frequency Hz 50/60
  • Temperature °C 650/800
  • Min. air flow l/min 120
  • Max. air flow l/min 650, 930, 960
  • Max. temperature by max. air flow °C 260/440/480/520
  • Static pressure Pa 450
  • Air outlet mm 62
  • Size (l x w x h) mm 322 x 138 x 180/360 x 138 x 180
  • Weight kg 6.8Weight kg 2,8/3,1 (with cord)
  • Markings CE
Download Datasheet
Request Now
Tensiometers

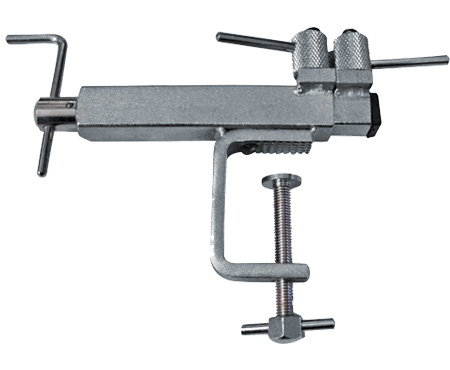

Tensiometer-Handy
Tensiometer Handy
  • The handy tensile shear tester for precise and easy tests on construction sides.
  • N/A
Request Now

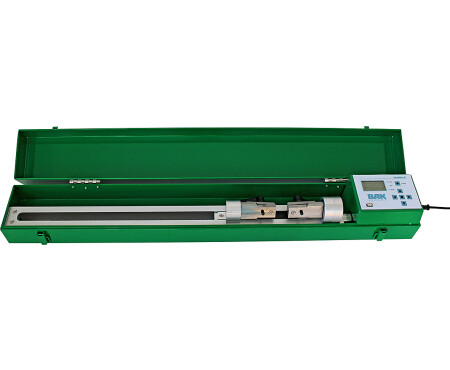

TestOn
  • for shear- and tensile tests
  • simple clamping of test material
  • storage of data with USB-stick
  • printout of data as graphic
  • rotatable jaws
  • Voltage V 120/230
  • Power W 250
  • Frequency Hz 50/60
  • Tension force N max. 2000
  • Drive speed mm/min max. 200
  • Drive distance absolute mm max. 450
  • Size cm 105x15x16
  • Weight kg 14,
  • Number of saved measurements max. 6414,
  • External saving USB-stick
  • Markings CE
Download Datasheet
Request Now
Test Equipment
Test needle with manometer for PVC
  • To test quality of welding seams by means of compressed air, with pressure gauge, needle nozzle for inserting in test channel.
  • N/A
Request Now
Test-needle-with-manometer-for-PE
Test needle with manometer for PE
  • To test quality of welding seams by means of compressed air, with pressure gauge, test needle for inserting in test channel.
  • N/A
Request Now
Vacuum-pump-

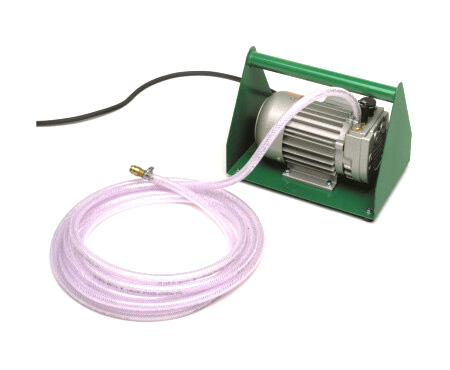

Vacuum pump
  • N/A
  • Power consumption
  • Frequency Hz 50/60
  • Vacuum bar 0.85
Request Now
Vacuum-box
Vacuum box
  • For testing of welding seams by vacuum
  • N/A
Request Now
Coupon-cutter

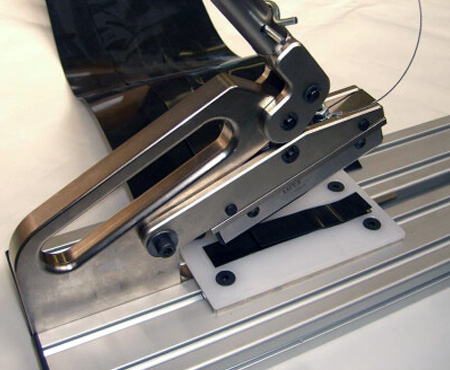

Coupon cutter
  • For fast and easy production of test samples from welding seams of membranes according DVS 2225 part 4
  • N/A
Request Now

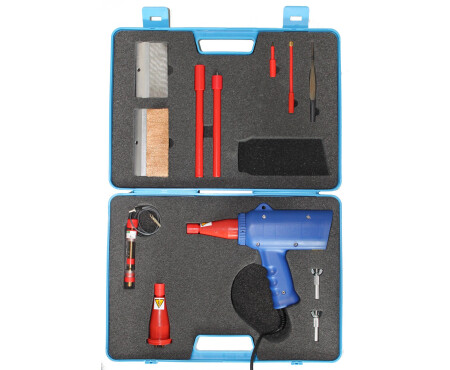

Spark tester kit
  • The whole kit will be spupplied in a robust plastic carrying case
  • N/A
Request Now

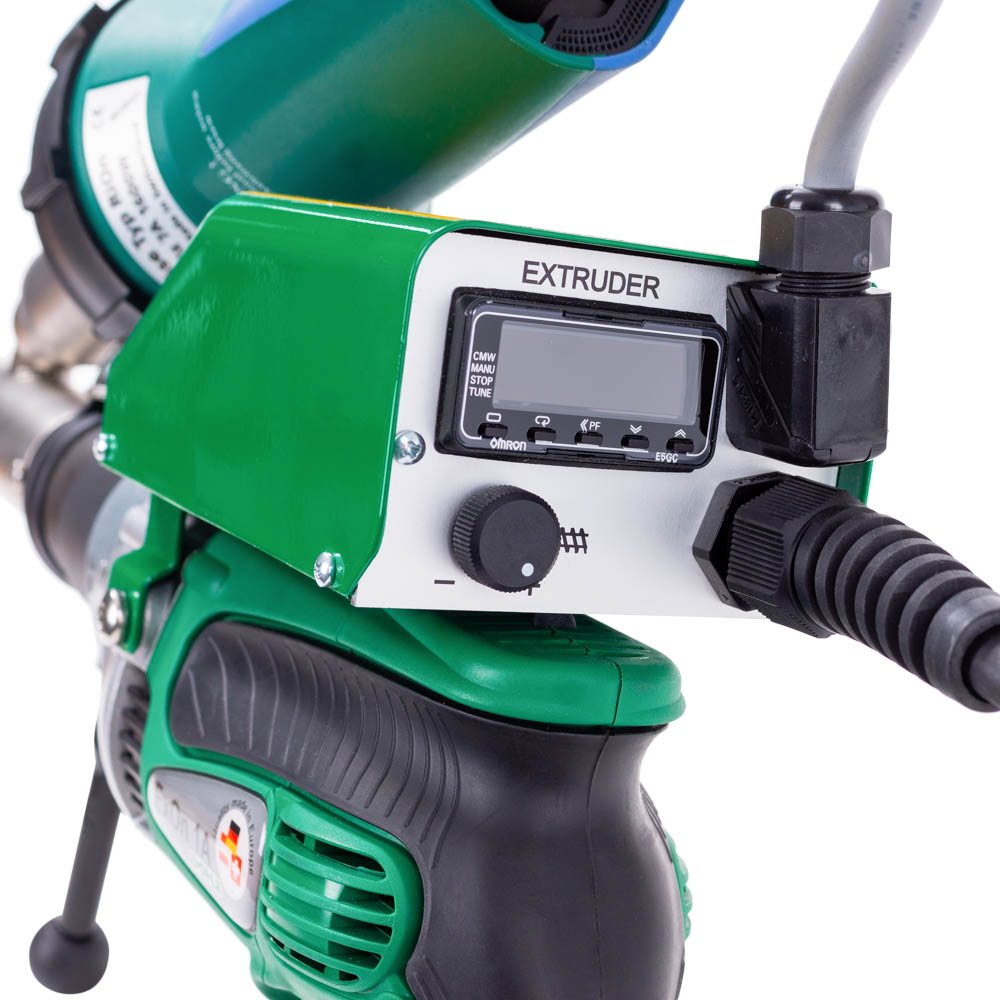

Plastic Extrusion Welders

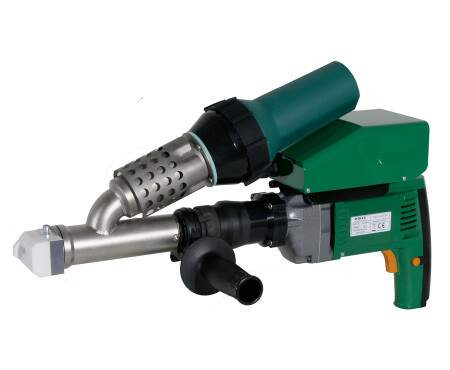

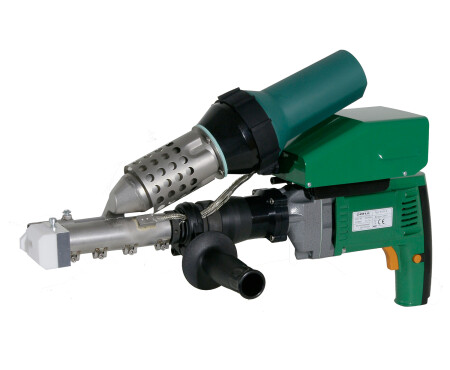

Extruder-type-ExOn-C3-

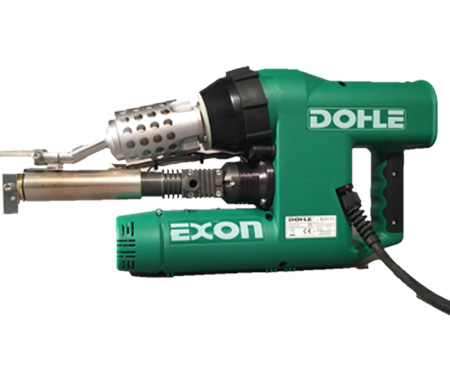

Extruder type ExOn C3
  • low weight
  • low noise
  • easy to use
  • working light
  • high air flow
  • high output
  • very short
  • Voltage V 230
  • Frequency HZ 50/60
  • Power consumption W 3500
  • Output kg/h 1-3,3
  • Temperature range mass °C 150-350
  • Air flow range l/min 300-500
  • Temperature range air °C 40-450
  • Noise dB 75
  • Weight kg 7.3
  • Welding materials PE, PP, PVDF, PVC
  • Size (l x w x h) mm 500 x 100 x 240
  • CE
Download Datasheet
Request Now

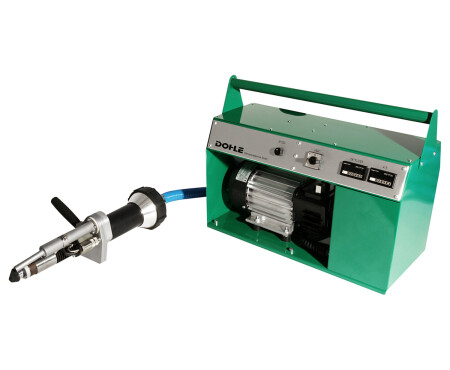

Extruder type Micro
  • for welding PE, PP, PVDF and PVC
  • separate control of air and ground temperature
  • fitted with integrated air supply in the control box
  • brushless motor for drive and blower
  • Voltage V 230
  • Power consumption W 1300
  • Frequency HZ 50/60
  • Output kg/h 0,1-0,5
  • Welding consumable mm 3 and 4 round
  • Size extruder (l x w x h) mm 410 x 75 x 100
  • Size control box (l x w x h) mm 530 x 210 x 410
  • Weight extruder kg 2,3
  • Weight control box kg 20 with 5 m cord
  • Protection class I
  • CE
Download Datasheet
Request Now

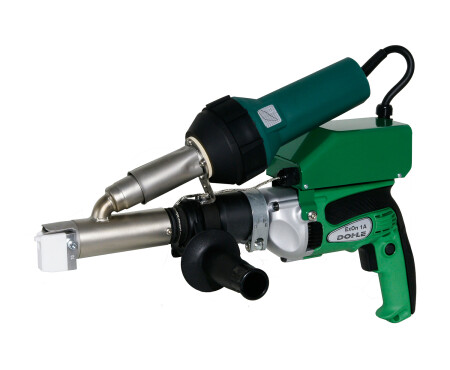

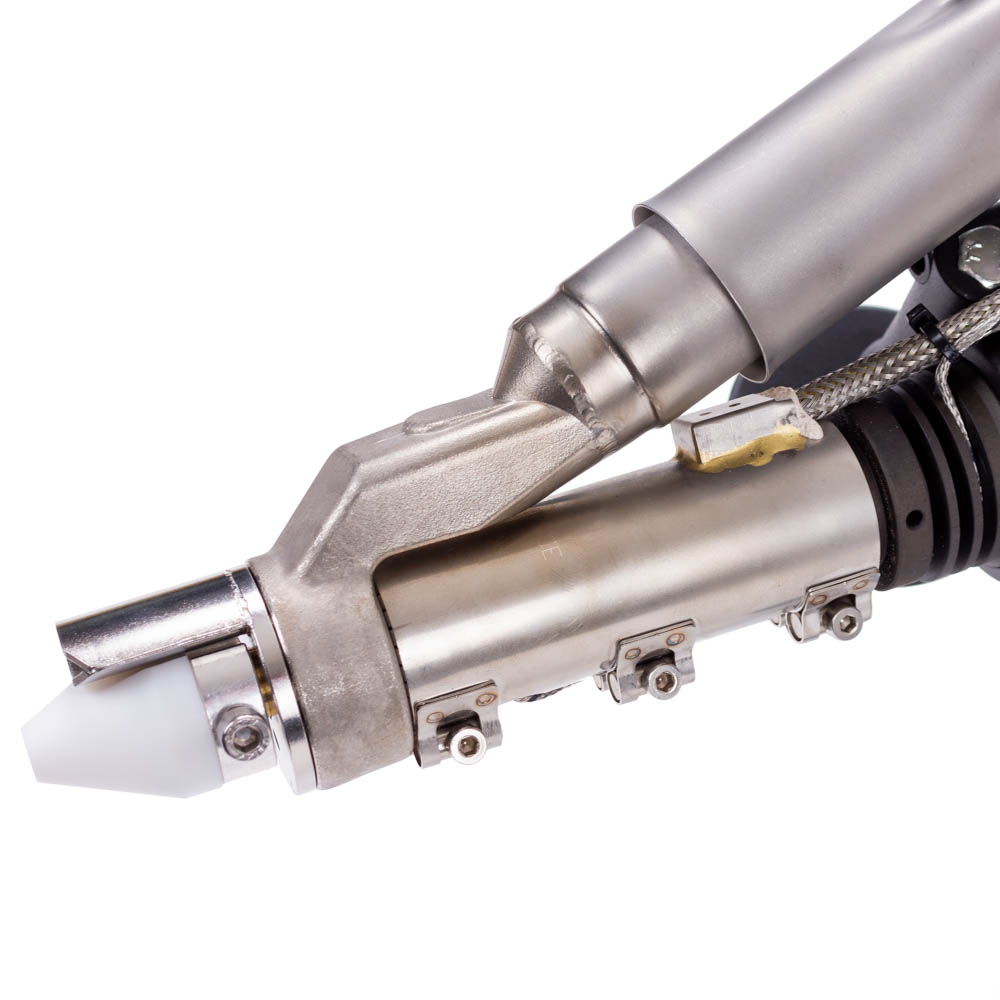

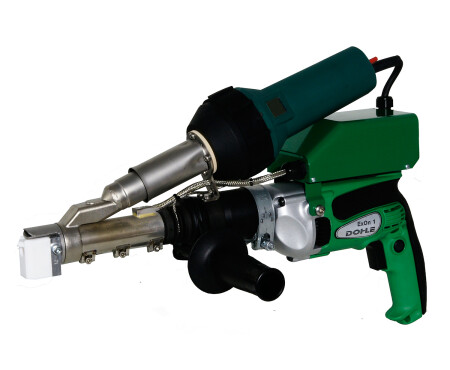

Extruder type ExOn 1
  • Air and mass temperature can be regulated separately
  • 360° rotation of the welding shoe possible
  • 2x welding shoes included in your order
  • Large range of accessoires available
  • Voltage V 120/230
  • Power consumption W 2640
  • Frequency HZ 50/60
  • Output kg/h max. 1,2
  • Welding consumable mm 3 and 4 round
  • Dimensions (l x w x h) mm 500 x 100 x 340
  • Pre-heater brushless
  • Welding materials PE, PP, PVDF, PVC
  • Weight kg 5
  • Protection class I
  • CE
  • DSC07904
  • DSC07908

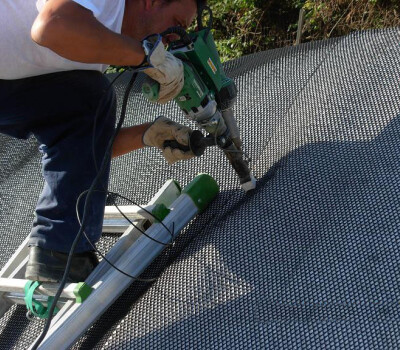

  • extruder5-v2__FocusFillWzQwMCwzNTAsIngiLDMzXQ
Download Datasheet
Request Now
Extruder type ExOn 1A
  • Air heated
  • 360° rotation of the welding shoe possible
  • 2x welding shoes included in your order
  • Large range of accessoires available
  • Voltage V 120/230
  • Power consumption W 2320
  • Frequency HZ 50/60
  • Output kg/h max. 1,2
  • Welding consumable mm 3 and 4 round
  • Dimensions (l x w x h) mm 500 x 100 x 340
  • Pre-heater brushless
  • Welding materials PE, PP
  • Weight kg 5
  • Protection class I
  • CE
  • DSC07904
  • extruder5-v2__FocusFillWzQwMCwzNTAsIngiLDMzXQ
  • DSC07900
Download Datasheet
Request Now
Extruder type ExOn 2
  • Air and mass temperature can be regulated separately
  • 360° rotation of the welding shoe possible
  • 2x welding shoes included in your order
  • Large range of accessoires available
  • Voltage V 230
  • Power consumption W 3600
  • Frequency HZ 50/60
  • Output kg/h max. 2
  • Welding consumable 4 or 5 round
  • Dimensions (l x w x h) mm 560 x 120 x 350
  • Pre-heater brushless
  • Welding materials PE, PP, PVDF, PVC
  • Weight kg 7
  • Protection class I
  • CE
  • SONY DSC

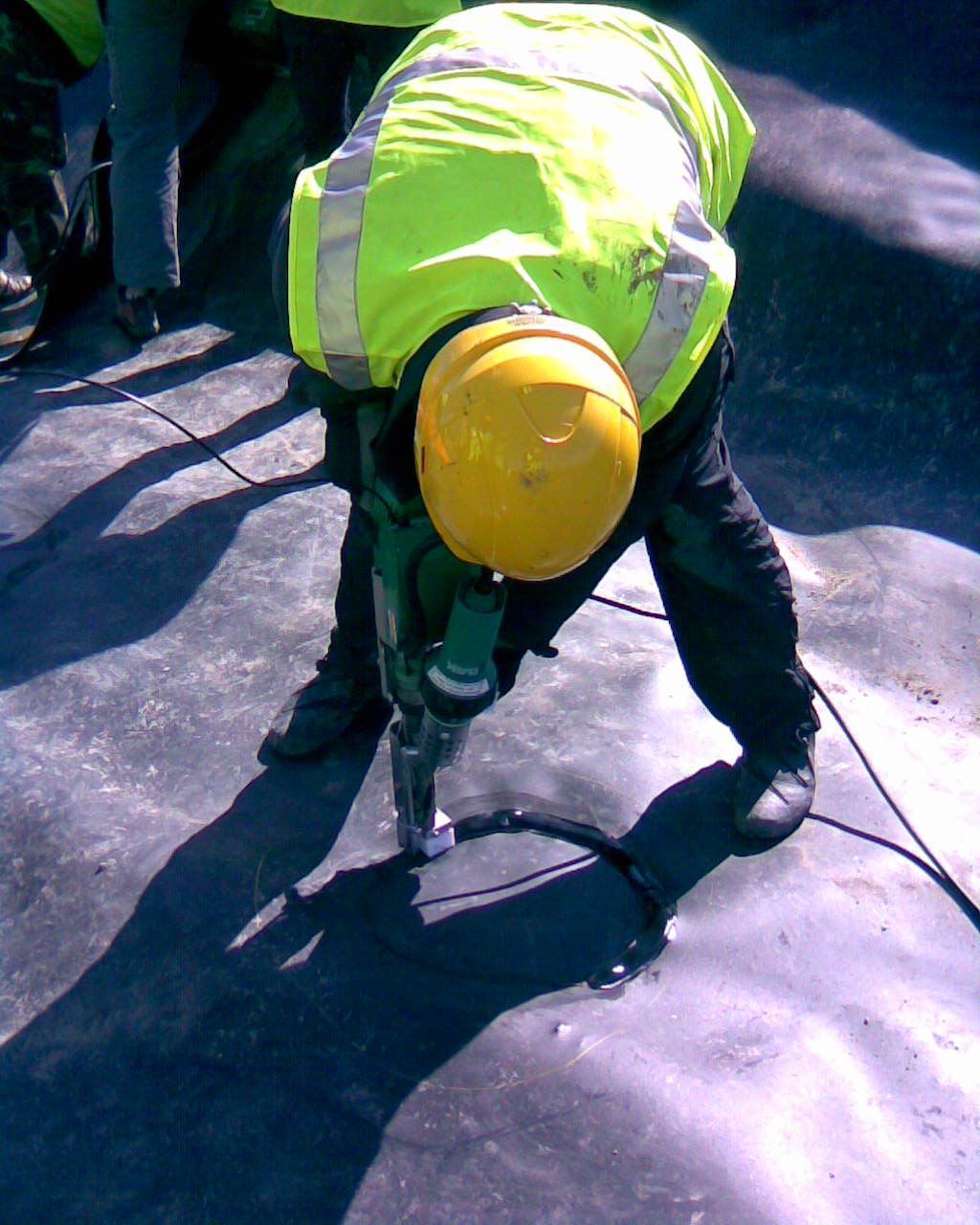

  • extruder6
Download Datasheet
Request Now
Extruder type ExOn 2A
  • air heated
  • 360° rotation of the welding shoe possible
  • 2x welding shoes included in your order
  • optionally for 3 and 4mm or 4 and 5mm wire
  • Large range of accessoires available
  • Voltage V 230
  • Power consumption W 3100
  • Frequency HZ 50/60
  • Output kg/h max 2
  • Welding consumable 4 or 5 round
  • Dimensions (l x w x h) mm 560 x 120 x 350
  • Pre-heater brush
  • Welding materials PE, PP
  • Weight kg 7
  • Protection class I
  • CE

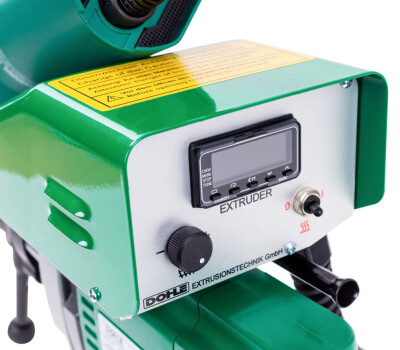

  • DSC07912__FocusFillWzQwMCwzNTAsInkiLDI1XQ
  • DSC07910
  • DSC07909
Download Datasheet
Request Now
Extruder type ExOn 3
  • Air and mass temperature can be regulated separately
  • 2x welding shoes included in your order
  • Large range of accessoires available
  • Voltage V 230
  • Power consumption W 3700
  • Frequency HZ 50/60
  • Output kg/h max 3
  • Welding consumable 4 or 5 round
  • Dimensions (l x w x h) mm 650 x 120 x 360
  • Pre-heater brush
  • Welding materials PE, PP, PVDF, PVC
  • Weight kg 8
  • Protection class I
  • CE

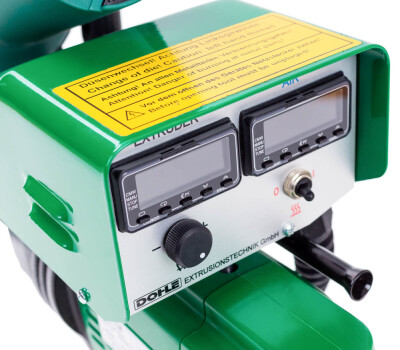

  • DSC07931__FocusFillWzQwMCwzNTAsInkiLDI1XQ

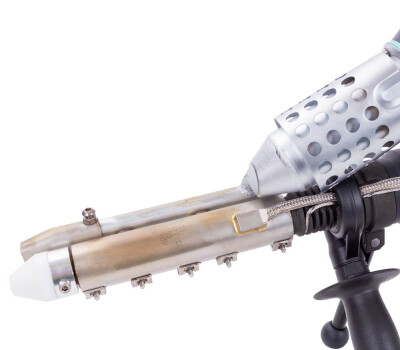

  • DSC07930__FocusFillWzQwMCwzNTAsInkiLDI1XQ
Download Datasheet
Request Now
Extruder type ExOn 3A
  • air heated
  • 1x welding shoes included in your order
  • Price/performance ratio unbeatable
  • Large range of accessoires available
  • Voltage V 230
  • Power consumption W 3600
  • Frequency HZ 50/60
  • Output kg/h max 3
  • Welding consumable 4 or 5 round
  • Dimensions (l x w x h) mm 650 x 120 x 310
  • Pre-heater brush
  • Welding materials PE, PP
  • Weight kg 8
  • Protection class I
  • CE

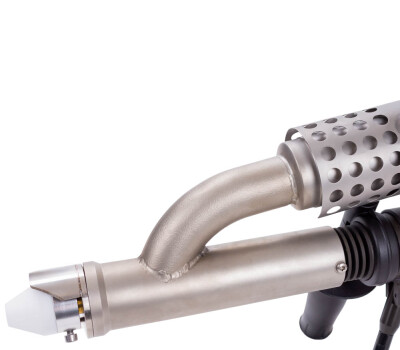

  • DSC07925__FocusFillWzQwMCwzNTAsInkiLDI1XQ
  • DSC07926__FocusFillWzQwMCwzNTAsInkiLDI1XQ
Download Datasheet
Request Now
Extruder type ExOn 5
  • for 5mm welding wire
  • 2x welding shoes included with order
  • Large range of accessories available
  • Voltage V 230/400
  • Power consumption W 5300
  • Frequency HZ 50/60
  • Output kg/h max 5
  • Welding consumable 5 round
  • Dimensions (l x w x h) mm 660 x 126 x 448
  • Pre-heater brush
  • Welding materials PE, PP
  • Weight kg 11
  • Protection class I
  • CE
  • DSC07940__FocusFillWzQwMCwzNTAsInkiLDI1XQ

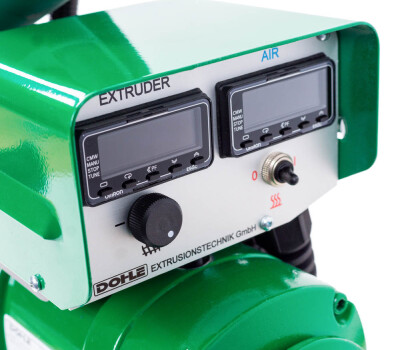

  • DSC07944-v2__FocusFillWzQwMCwzNTAsInkiLDI1XQ
Download Datasheet
Request Now
Extruder type ExOn 6
  • for granulat
  • 2x welding shoes included with order
  • Large range of accessories available
  • Voltage V 230/400
  • Power consumption W 5300
  • Frequency HZ 50/60
  • Output kg/h max 6
  • Welding consumable pellets
  • Dimensions (l x w x h) mm 660 x 126 x 365/600
  • Pre-heater brush
  • Welding materials PE, PP
  • Weight kg 12
  • Protection class I
  • CE
Download Datasheet
Request Now
Industrial Extrusion Welders
Robot 0,4
  • low weight
  • for automated welding
  • easy to use
  • for 3D printing
  • Voltage V 230
  • Power W 1500
  • Output kg/h max. 0,4
  • Welding consumsble 4 round
  • Size (L x B x H) mm 370x100x120
  • Weight kg 2,2
  • Protection class I
  • CE
Download Datasheet
Request Now
Robot 0,8
  • for automated welding
  • for 3D printing
  • low weight
  • easy to use
  • version with and without preheat available
  • Voltage V 230
  • Power W 800
  • Output kg/h max. 0,8
  • Welding consumsble 4 round
  • Size (L x B x H) mm 540x120x100
  • Weight kg 4,9
  • Protection class I
  • CE
Download Datasheet
Request Now
Extruder type ExOn 7
  • N/A
  • Voltage V 3x400
  • Power consumption W 6000
  • Frequency Hz 50/60
  • Output kg/h max. 5
  • Welding consumable mm 5 round
  • Dimensions (l x w x h) mm 846 x 267 x 242
  • Weight kg 40
  • Protection class I
  • CE
Request Now
ExOn 7 Drive
  • Preheating optionally possible with either internal air(ErOn) / or external air(S36)
  • With granules (ExOn 8 Drive) -6Kg/h (incl. granulate container 2,5l) also available with suction conveyor on request
  • Welding speed depends on the material, Orbital velocity: 0-2m/min –stepless adjustable
  • Suitable for panels/material thickness from 10mm
  • Permissible workpiece weight up to 300Kg –higher on request
  • Pipe diameter of 500-1200mm
  • Deviations/tolerance circle circumference up to 5mm
  • Voltage V 3x400
  • Power consumption W 5200
  • Pneumatic pressure bar 6,5-9
  • Output kg/h max. 5
  • Welding consumable 5 round
  • Dimensions (L x B x H) mm 1600x800x1000
  • Weight kg ca. 100kg
  • Protection class I
  • CE
Request Now
ExOn 8 Drive
  • Preheating optionally possible with either internal air(ErOn) / or external air(S36)
  • With granules (ExOn 8 Drive) -6Kg/h (incl. granulate container 2,5l) also available with suction conveyor on request
  • Welding speed depends on the material, Orbital velocity: 0-2m/min –stepless adjustable
  • Suitable for panels/material thickness from 10mm
  • Permissible workpiece weight up to 300Kg –higher on request
  • Pipe diameter of 500-1200mm
  • Deviations/tolerance circle circumference up to 5mm
  • Voltage V 3x400
  • Power consumption W 5200
  • Pneumatic pressure bar 6,5-9
  • Output kg/h max. 6
  • Welding consumable granules
  • Dimensions (L x B x H) mm 1600x800x1000
  • Weight kg ca. 100kg
  • Protection class I
  • CE
Request Now
Extruder type ExOn 8
  • N/A
  • Voltage V 3x400
  • Power consumption W 6000
  • Frequency Hz 50/60
  • Output kg/h max. 6
  • Welding consumable pellets
  • Dimensions (l x w x h) mm 852 x 267 x 242/430
  • Weight kg 42
  • Protection class I
  • CE
Request Now
Extruder type ExOn 10
  • for automated welding
  • for 3D-printing
  • for mounting on Robot arms and simple axis systems
  • 2 heating zones
  • lofeeder cooling possiblew weight
  • mounting position variable
  • Voltage V 3x400
  • Power consumption W 5000
  • Frequency HZ 50/60
  • Output kg/h max. 6
  • Welding consumable pellets
  • Size with preheating (l x w x h) mm 820 x 300 x 250
  • Size without preheating (l x w x h) mm 800 x 300 x 250
  • weight with/without preheating kg 22/19
  • CE
Download Datasheet
Request Now
Extruder type HS28
  • N/A
  • Voltage V 3x400
  • Power consumption W 11000
  • Frequency HZ 50/60
  • Output kg/h max. 12
  • Welding consumable pellets
  • Dimensions (l x w x h) mm 1040 x 600 x 660
  • Weight kg 210
  • Protection class I
  • CE
Download Datasheet
Request Now
Blowers

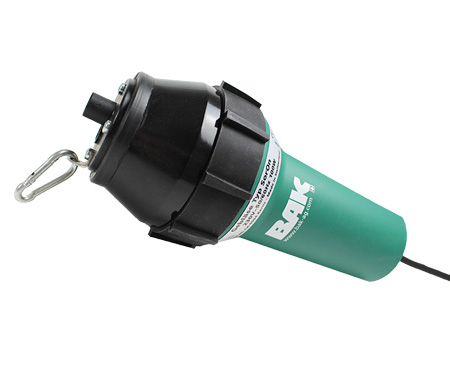

SorOn
SorOn
  • small, but powerful
  • compact
  • for external air supply
  • handy
  • low noise
  • Voltage V 120/230
  • Power consumption W 100
  • Frequency Hz 50/60
  • Air flow (20°C) l/min 400
  • Static pressure Pa 5000 x H) mm 370x100x120
  • Air outlet (outside) mm 14,5
  • Dimensions (l x Ø) mm 260 x 94, handle Ø 64 I
  • Weight kg 1,2 with 3 m cord
  • CE
Download Datasheet
Request Now

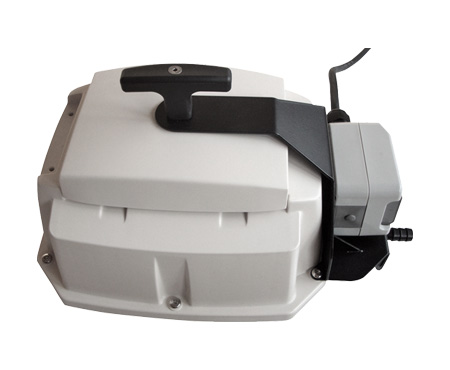

Air-Station-N80
Air Station N80
  • N/A
  • Voltage V 230
  • Frequency Hz 50/60
  • Power consumption W 86
  • Air flow (20°C) l/min 80
  • Air outlet (outside) mm 14,5
  • Dimensions (l x w x h) mm 305 x 214 x 230
  • Weight kg 6
  • CE
Download Datasheet
Request Now
Air-Station-N80
Air Station N200
  • N/A
  • Voltage V 230
  • Frequency Hz 50/60
  • Power consumption W 215
  • Air flow (20°C) l/min 200
  • Air outlet (outside) mm 14,5
  • Dimensions (l x w x h) mm 475 x 212 x 332
  • Weight kg 12,3
  • CE
Download Datasheet
Request Now

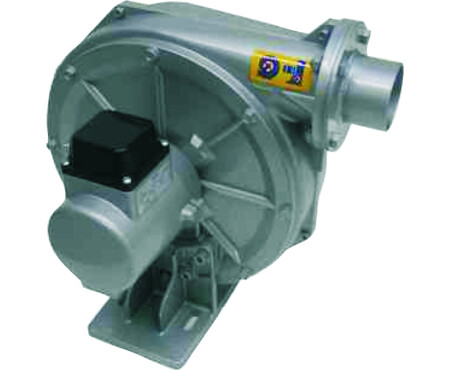

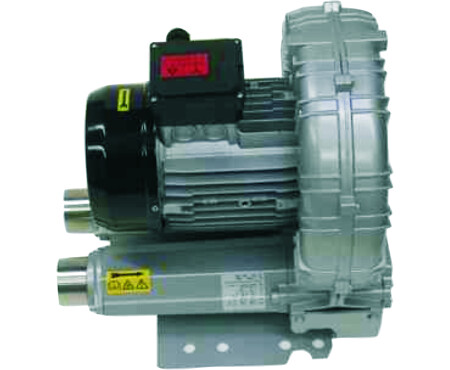

High pressure blower type HD 150
  • 5800435 High pressure blower type HD150, 1x230V
  • 5800424 High pressure blower type HD150, 3x230/400/480V
  • Voltage V 3x230-440/3x230-480
  • Power consumption W 440/560
  • Frequency Hz 50/60
  • Ambient temperature °C -20°C to +60°C
  • Volumetric current m3/min 1,30/1,50
  • Total pressure difference Pa 15000/20000
  • Noise pressure level LpA (dB) 73/76
  • Inlet port mm Ø 38 (exterior)
  • Outlet port mm Ø 38 (exterior)
  • Dimensions (l x w x h) mm 283 x 244 x 266,5
  • Weight kg 12
  • Type of protection IP 55
Request Now
High pressure blower type HD240
  • N/A
  • Voltage V 3x230-400/3x460
  • Power consumption W 2200/2550
  • Frequency Hz 50/60
  • Ambient temperature °C -20°C to +60°C
  • Volumetric current m3/min 3,65/4,42
  • Pressure static Pa 27000/26000
  • Noise pressure level LpA (dB) 68,8/70,8
  • Inlet port mm Ø 60 (exterior)
  • Outside port mm Ø 60 (exterior)
  • Dimensions (l x w x h) mm 397 x 327 x 365
  • Weight kg 26,5
  • Type of protection IP 54
Request Now
Medium pressure blower Type MD10
  • N/A
  • Voltage V 3x200-480
  • Power consumption W 110
  • Frequency Hz 50/60
  • Ambient temperature °C -20°C to +60°C
  • Volumetric current m3/min 4,9/5,2
  • Noise pressure level LpA (dB) 73/76
  • Environmental protection IP 54
  • Inlet port mm Ø 70
  • Outlet port mm Ø 60
  • Dimensions (l x w x h) mm 231 x 356,5 x 344,5
  • Weight kg 8,5
Request Now
Medium pressure blower Type MD14
  • N/A
  • Voltage V 3x200-480
  • Power consumption W 370/550
  • Frequency Hz 50/60
  • Ambient temperature °C -20°C to +60°C
  • Volumetric current m3/min 16,5
  • Total pressure difference Pa 1400/2000
  • Noise pressure level LpA (dB) 76/77
  • Environmental protection IP 54
  • Inlet port mm Ø 125
  • Outlet port mm Ø 90 (exterior)
  • Dimensions (l x w x h) mm 345 x 485 x 485,5
  • Weight kg 17
Request Now

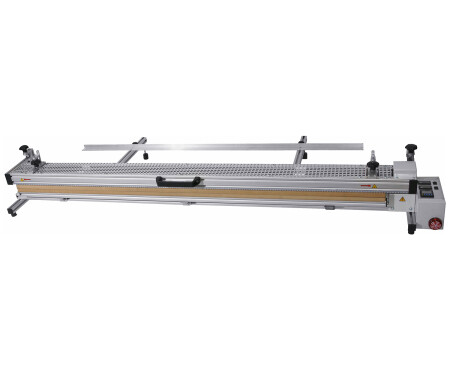

Table Heaters & Grooving Machines
Table heater TG
  • N/A
  • Voltage V 120/230
  • Power consumption W 100
  • Frequency Hz 50/60
  • Air flow (20°C) l/min 400
  • Static pressure Pa 5000 x H) mm 370x100x120
  • Air outlet (outside) mm 14,5
  • Dimensions (l x Ø) mm 260 x 94, handle Ø 64 I
  • Weight kg 1,2 with 3 m cord
  • CE
Download Datasheet
Request Now
Table heater TGmO
  • N/A
  • Voltage V 230
  • Frequency Hz 50/60
  • Power consumption W 86
  • Air flow (20°C) l/min 80
  • Air outlet (outside) mm 14,5
  • Dimensions (l x w x h) mm 305 x 214 x 230
  • Weight kg 6
  • CE
Download Datasheet
Request Now

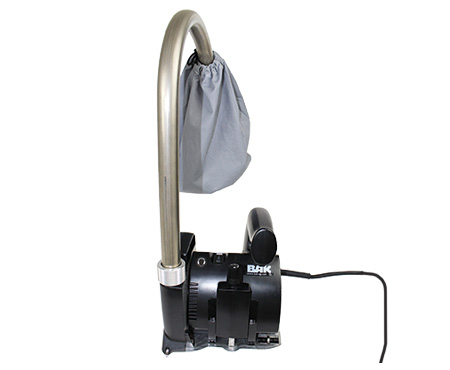

RotOn
RotOn
  • cuts welding grooves into all different types of floor coverings
  • enables cut grooves along the walls
  • integrated dust exhaust fan
  • two levels of cutting speed
  • three-point rest during milling to even unevenness
  • adjustable guide roller enables milling of nap covers
  • simple changing of cutting blade
  • Voltage V 120/230
  • Power consumption W Level 1: 350/level 2: 700
  • Frequency Hz 50/60
  • Speed U/min Level 1: 14800/level 2: 18500
  • Groove depth adjustment mm 0-4 stepless
  • Noise level LpA dB 78
  • Size (L x W x H) mm 210 x 210 x 262
  • Weight kg 4,8 with 3 m cord
  • CE
Download Datasheet
Request Now
